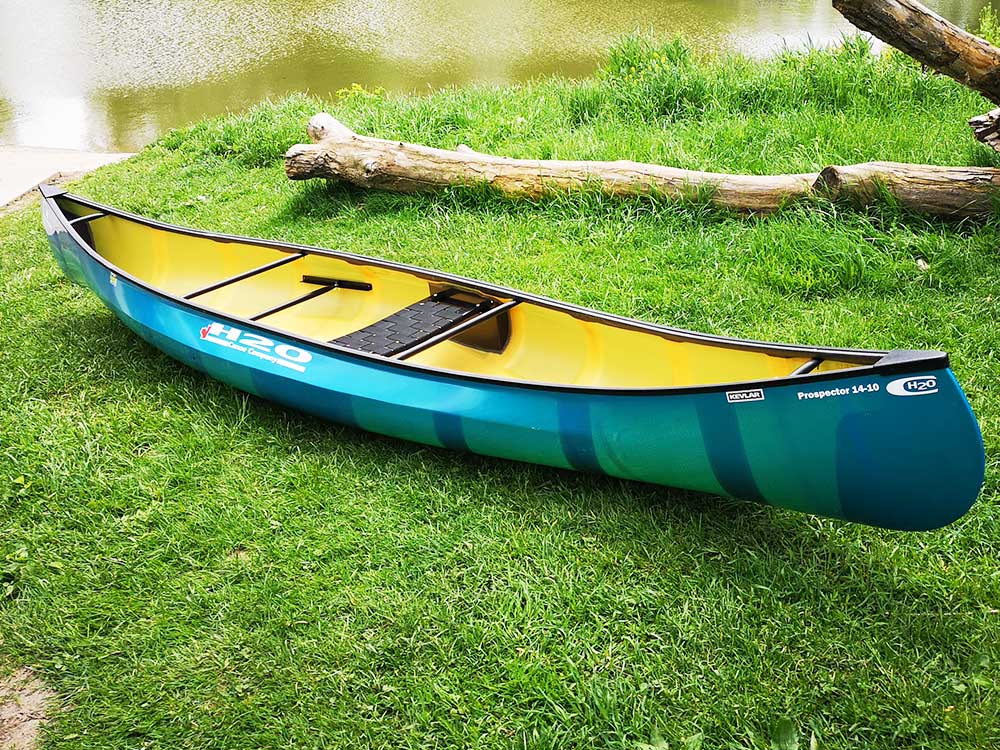

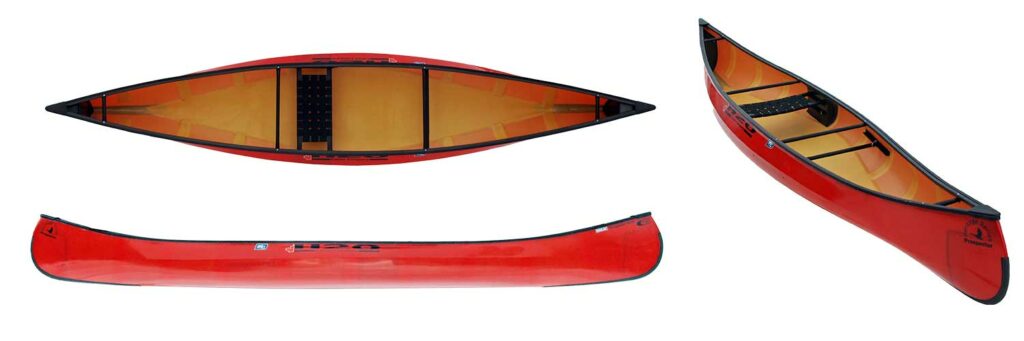

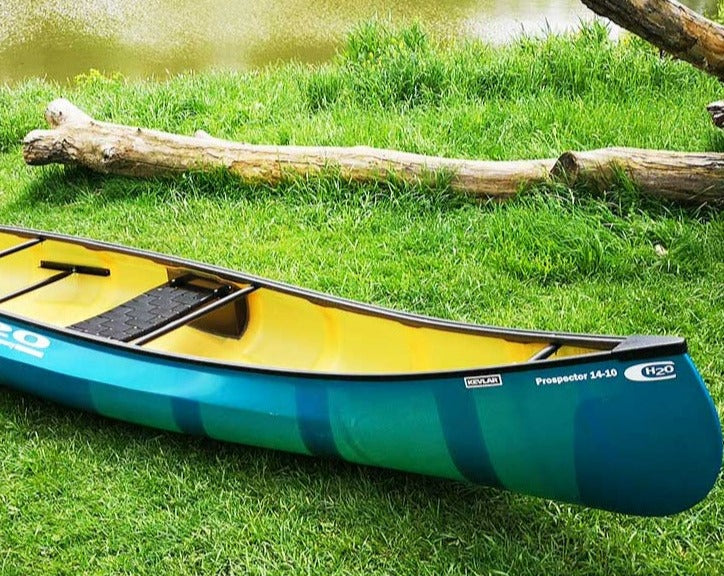

H2O PROSPECTOR 14'10 SOLO

H20 PROSPECTOR 14'10 SOLO DESCRIPTION

H2O'S Prospector 14-10 Solo is every bit a Prospector style hull with a unique, aggressive freeboard turn in. Reducing the width of the center paddling station allows ease of paddling single or double blade style as reaching over the sides is simplified. The Prospector 14-10 is a typical depth for a solo canoe but more voluminous than their asymmetrical 14-6 or 16-6 options, giving excellent initial stability and tandem like capacity.

SPECIFICATIONS

GWN Innegra Tuff Weight 48 lbs

GWN Kevlar Weight 45 lbs

EPS Brute Force Innegra Basalt Weight 41 lbs

EPS Brute Force Kevlar Weight 38 lbs

EPS Brute Force Carbon Kevlar Weight 38 lbs

EPS Brute Force Co-Mingle Innegra Basalt Weight 38 lbs

EPS Brute Force Carbon Innegra Weight 37 lbs

EPS Pro Lite Innegra Basalt Weight 34 lbs

EPS Pro Lite Kevlar Weight 32 lbs

EPS Pro Lite Carbon Kevlar Weight 32 lbs

EPS Pro Lite Co-Mingle Innegra Basalt Weight 32 lbs

EPS Pro Lite Carbon Innegra Weight 37 lbs

EPS Pro Lite Carbon Weight 31 lbs

Length 14’10”

 Max Width 33″

 Waterline Width 30″

 Height – Bow / Centre / Stern 19″ / 12.5″ / 19″

 Optimum Load 150-350lbs

 Max Load 650lbs

BUILD SERIES OPTIONS

GREAT WHITE NORTH

The Great White North series is H2O's standard lamination series for canoeists who desire a brilliantly coloured lightweight option. The Great White North series is a standard construction canoe, moderately lightweight, competitively priced, and durable for many paddling requirements.

The technical fabric offered with H2O's Great White North series is Kevlar or Innegra Basalt, laminated around a rigid reinforcement system, matched with high grade marine vinyl ester resin to construct the hull. The closed cell foam core in the hull base combined with Kevlar ribs produce rigid strength for ultimate performance and longevity.

Kevlar is the lightest option in their Great White North series while Innegra Tuff is a more cost effective choice, though it is a touch heavier.

EPOXY PRO SERIES BRUTE FORCE

The Brute Force series is the perfect balance of being strong while staying lightweight. The Epoxy Pro Series, Brute Force is H2O's toughest canoe. The Brute Force series hits all targets for most paddlers: tough, light, visually attractive, and available with virtually every canoe we produce.

Some features of the Brute Force series include industry standard aluminum gunwales with ABS end caps. These basic components are thought through to ensure they meet the goals of ultimate strength at the lightest weight possible. Most of the features of the Brute Force series are unique and strategically developed to create the best results in the lightweight canoe category. The Brute Force series is comprised of performance reinforcements handcrafted with techniques that aren’t quick or easy. The result is an attractive, long lasting hull with no undesirable features—a true performance canoe in the lightweight category.

EPOXY PRO SERIES PRO LITE

The Pro Lite series is H2O'S lightest series to breeze through those long portages.

Epoxy Pro Series Pro Lite is H2O'S most advanced construction system yet, embodying what it means to create an ultralight canoe that remains durable against wear, tear, and mishaps. Its aesthetics stop observers in their tracks, while the design is professionally constructed for both performance and efficiency. The Pro Lite series combines advanced composite construction techniques with the modern requirements of paddlers, pursuing lighter and stronger equipment than ever available.

The Pro Lite series is H2O'S most innovative series yet with many complex features that go beyond an ordinary canoe build. Their carbon wrapped Integral Composite Gunwale (ICG) complements the rib reinforcements and closed cell foam used in the hull. An Epoxy Resin system is used in this complex build matrix to achieve maximum strength, while a unique method of skin coating is used to create a UV resistant, repairable, ultra thin, and ultra light coating for the boat. An ultra light aluminum trim over the carbon wrapped gunwale offers unmatched longevity while reducing the total canoe weight by approximately 5 to 7 lbs. This weight reduction allows them to put additional weight in other places for strategic reinforcements, so there’s no compromise in durability.

The rib system keeps the canoe rigid enough to perform, while creating just enough flex between ribs to absorb impact. It is subtle, but even the area surrounding the seat mount includes a cross rib for strength to support a seat bracket, which is both adhered and riveted to the hull. When the seat is fastened to this mount there is no movement or sway and the strength in the hull is increased similarly to a truss construction technique.
